STEP 1
You must first determine what IP address is assigned to your device. To
do this, you need to pick up the phone attached to the Line 1 jack and
dial:
**** (in other words press, star key four times)
then dial: 110
#
and you will be told the
IP Address of your device (e.g. 192.168.0.1)
STEP 2
Go to any browser
equipped computer on your network and enter the address: http://<IP
ADDRESS>/
(where <IP ADDRESS>will be replaced by the address that would be
given to you in STEP 1.
|
STEP 3

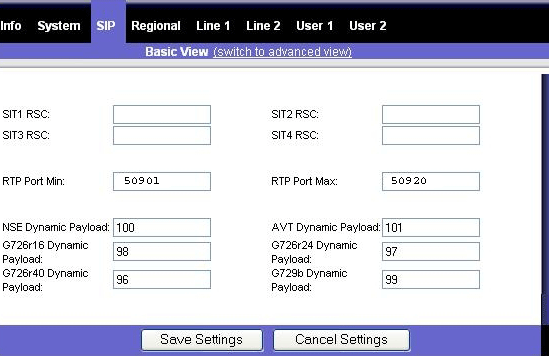

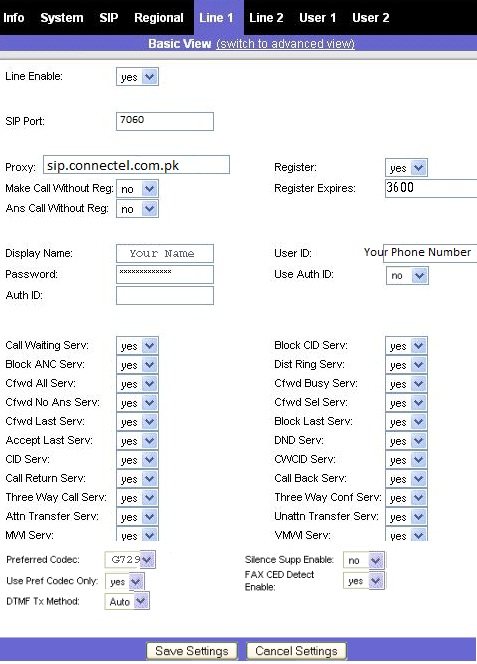

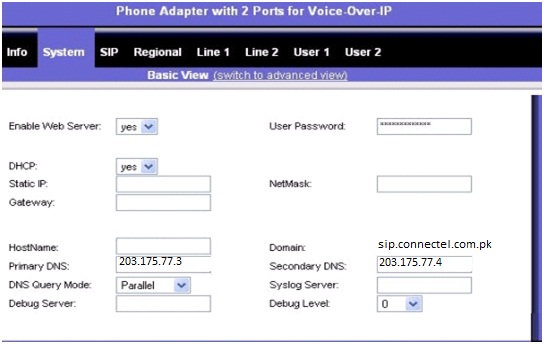

You need to modify only a few parameters from the factory default.
Do your settings as shown below.
|
|
Note: Please save every
page separately when you will do any change to update your device for
ConnecTel.
Click on Save Settings
after changes.
Click on Save Settings
after changes.
|
STEP 6
Make calls!
you are
now ready to make and receive calls, your phone number is
042-3253xxxx, it can be dialed from anywhere in the world, from
PTCL Lahore line, you will have to dial only 3253xxxx.
|
|
